LoRa ESP32 IOT Development Board - Transceiver

Regular price
$38.74
Sale price
$38.74
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

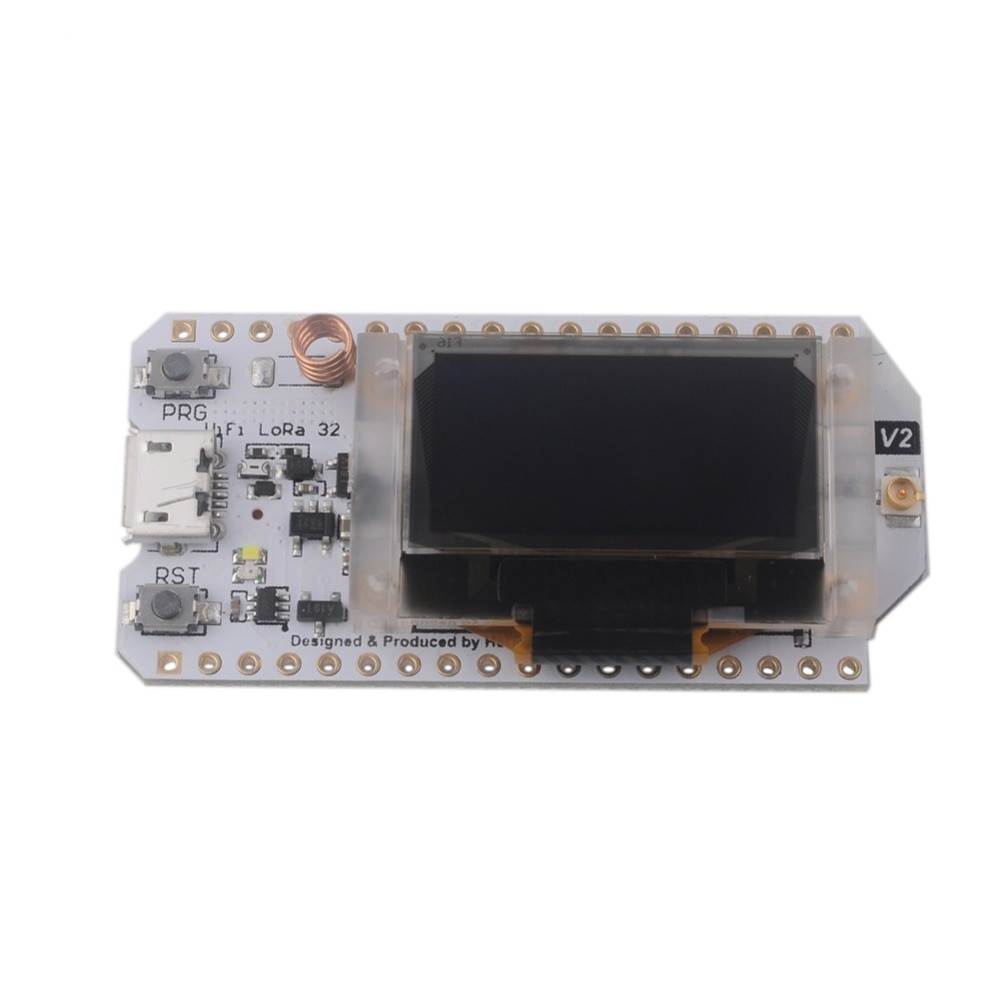

SX1278 LoRa ESP32 0.96 inch Blue OLED Display Bluetooth WIFI Lora Kit 32 Module Transceiver IOT Development Board 433mhz 868MHz 915Mhz

Description:

Main chip: espressif esp32 and SX1276
Operating voltage: 3.3V to 7V
Flash:32M-Bits
Main Frequency:240MHz
Lora chip:SX1276
Distance: about 2.8KM in open place
Computing power: 600DMIPS
Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
Development environment: support for arduino
USB adapter chip: cp2102
Operating temperature range: -40 deg C to + 90 deg C
Support modes: Sniffer, Station, softAP and Wi-Fi Direct
Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
Receiver sensitivity up to - 98 dBm
UDP continues to throughput by 135 Mbps

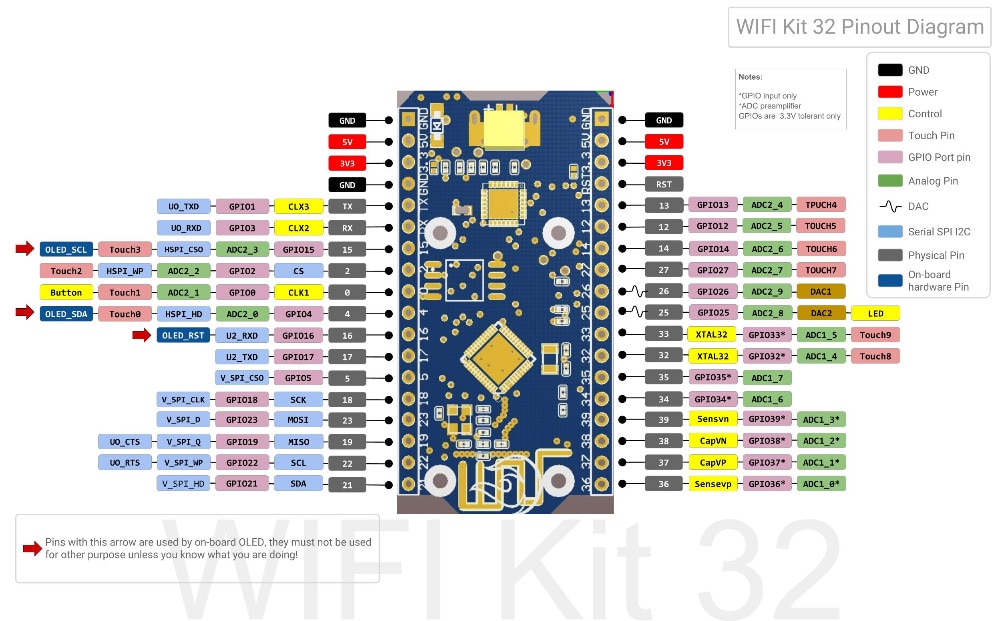

SX1278 LoRa ESP32 OLED FZ2886-A SX1278 LoRa ESP32 0.96 OLED FZ2886 SX1278 868-915MHz Wifi Lora Kit-lorawanFZ2886 SX1278 868-915MHz ESP32  Pin out diagramFZ2886 SX1278 868-915MHz Wifi Lora Kit-lorawan (2)
